geoWidgets UI Activity Pack for Geocortex Workflow 5 adds a Progress Bar activity to communicate the status of tasks to your web GIS users.

geoWidgets UI Activity Pack for Geocortex Workflow 5 Released

Digital Data Services, Inc. (DDS), is pleased to announce the initial release of the geoWidgets UI Activity Pack for Geocortex Workflow 5 on ArcGIS Marketplace. The geoWidgets UI Activity Pack adds a Progress Bar dialog into Geocortex Workflows communicating the status of an extended tasks to your web GIS users.

People want progress bars

In a perfect world, running tasks in web GIS is instantaneous. The reality is certain tasks take time to complete. “The importance of percent-done progress indicators for computer-human interfaces” by Dr. Brad Meyers of the University of Toronto and “The Power of the Progress Bar” by Neil Patell cover the importance of providing feedback to users. The biggest benefits of a progress bar are:

  • Satisfies our need to complete
  • Provides the user with a feeling of progress
  • Inform the user how long a task will take to complete
  • Prevent the browser from being overloaded with unnecessary actions.

Getting Started with the Progress Bar Modal Activity

The Progress Bar Modal activity displays a configurable dialog to display the status of extended processing tasks within web GIS. To get started, you will need subscriptions to the following on ArcGIS Marketplace:

Copying a Progress Bar Modal Sample Workflow

To help you get started with the Progress Bar Modal activity, we created a sample Workflow. To copy the sample workflow to your Workflow Designer:

  1. In Workflow Designer, click File in the sidebar
  2. Click Open by URL and paste in the following url: https://www.arcgis.com/home/item.html?id=190ef34ce1c9427da2421e9788bba9b7
  3. To save, click File in the Geocortex Workflow Designer sidebar, and click Save.

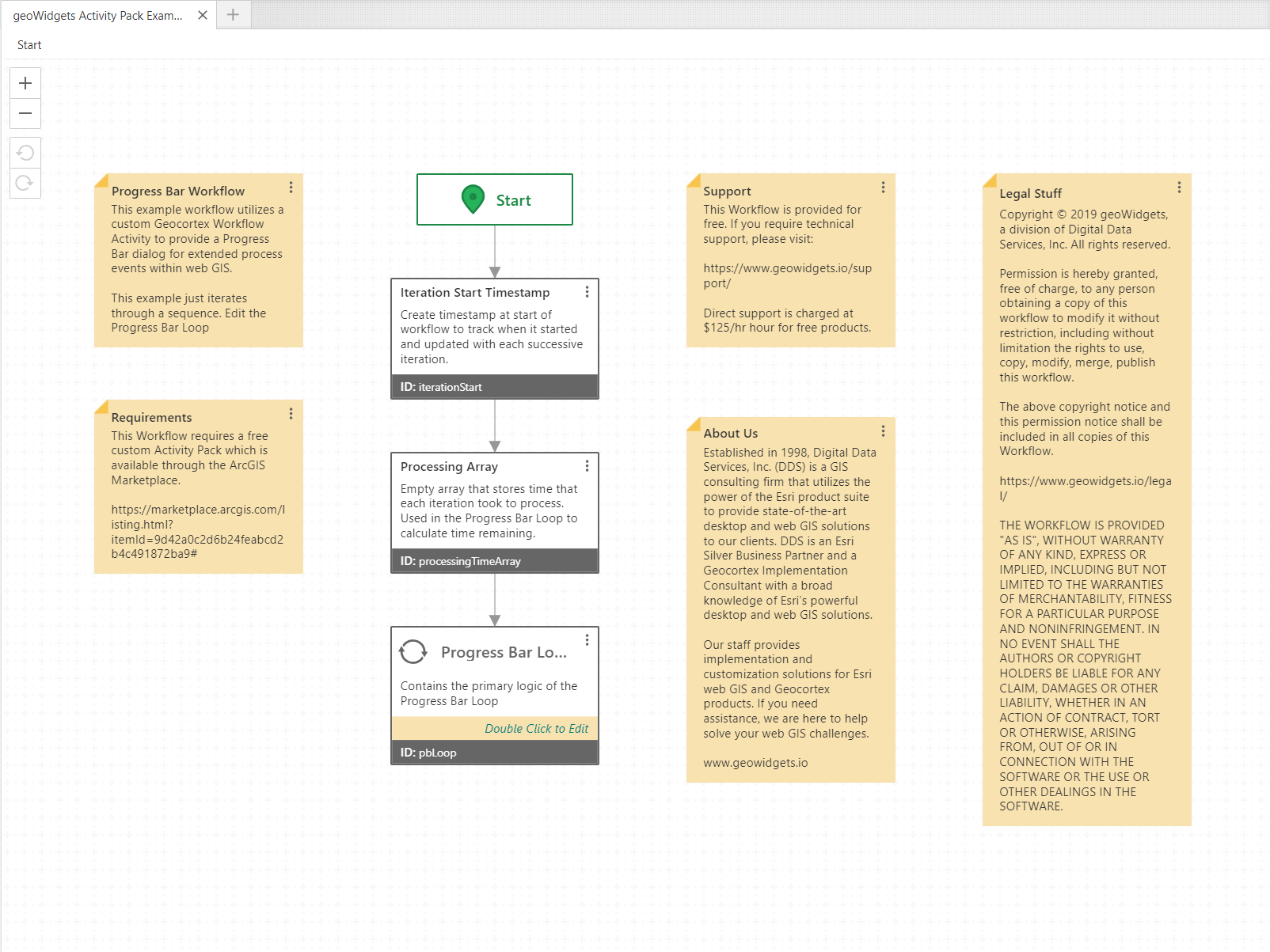

The sample Workflow executes a loop (Progress Bar Loop) to 50 iterations. The internal loop (Example Logic) should be replaced with the actual code you want to execute. It only exists to slow down the loop for the demo. While the example uses a Loop, you can also use a For Each by copying the contents of the Progress Bar Loop to your new control flow function.

The following items are configurable in the Progress Bar:

  • Main Message – The main message displayed to the user.
  • Message – The secondary message provided to the user.
  • Progress Bar Color
  • Full Screen Override – Prevents the user with interacting with the web GIS application until it completes.
  • Modal Size – The size of the modal dialog as a percentage of the screen.
  • Time Remaining – Whether to display the time remaining.

For more information, please visit the full documentation…

We hope this Progress Bar Modal Workflow Activity is helpful and look forward to see how you use it in your web GIS applications.
